Introduction:

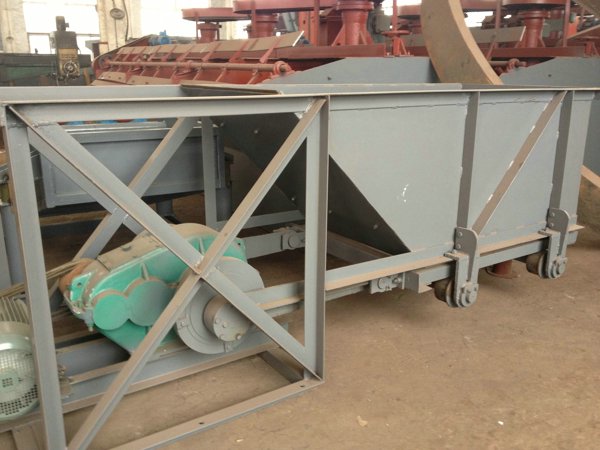

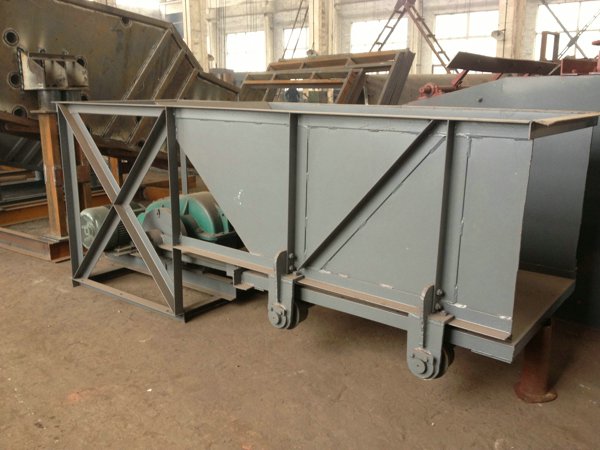

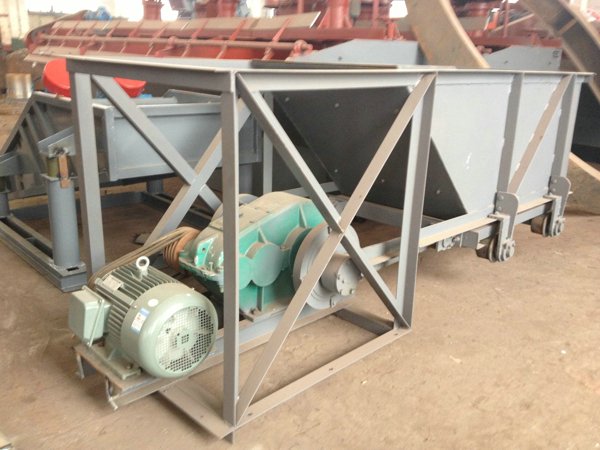

The chute feeder can be installed on the ground or onto discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/min and the stroke is 20-200mm. Stroke can be adjusted by the eccentric wheel; the eccentric throw is half of the stroke. According to experience of some mine sites, the eccentric throw should no less than 30mm for cohesive ore. The chute width is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500mm. The most common specification is 980*1240 chute feeder, with feeding granularity between 350-0mm, which is the best partner of 400*600 jaw crusher.
Type | Size of discharging opening （mm） | Max discharge size (mm) | Times of reciprocating (times/min) | Feeding capacity (t/h) | Motor power (KW) | Overall dimension (mm) | Weight (kg) |
600×500 | 600×500 | 205 | 38.9 | 10.5－25.5 | 4 | 2750×910×855 | 1054 |
980×1240 | 980×1240 | 350 | 23.7 | 36－90 | 7.5 | 3560×1000×1070 | 1980 |
1000×1900 | 1000×1900 | 300 | 27 | 300 | 7.5 | 3900×1590×1340 | 2691 |
