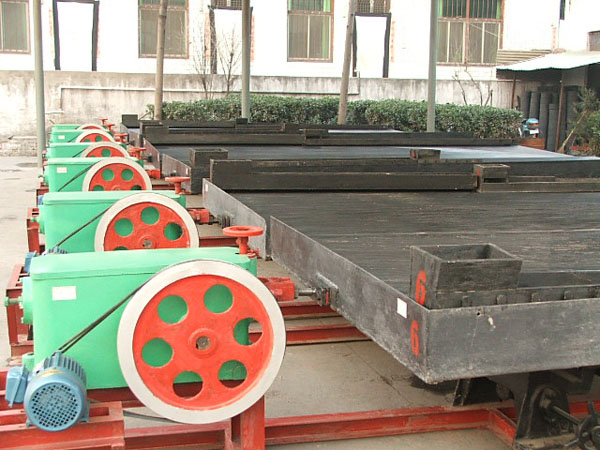

Shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
Our company has long history of table concentrator production; we provide variety of table concentrators with high processing capacity, high recovery rate and high enrichment ratio.
6-S type shaking table is a kind of physical mine- selection equipment, which is used for selecting rare and valuable metals including gold, silver, lead, zinc, tantalum, niobium and tin
Main Technical Parameters of Shaking Table:
Model | L-S type(6-S) | Clean water(t/h) | 0.4-0.8 |
Stroke(mm) | 10-30 | Table size (mm) | 1520*1825*4500 |
Frequency(time/min) | 240-360 | Motor(kw) | 1.1 |
Horizontal obliquity(o) | 0-8 | Capacity(t/h) | 0.5-1.2 |
Sorting size(mm) | 2-0.074 | Weight (kg) | 1012 |
Feeding thickness(%) | 15-30 | Dimension(mm) | 5454*1825*1242 |
